Description
| Specification | Detail |
|---|---|

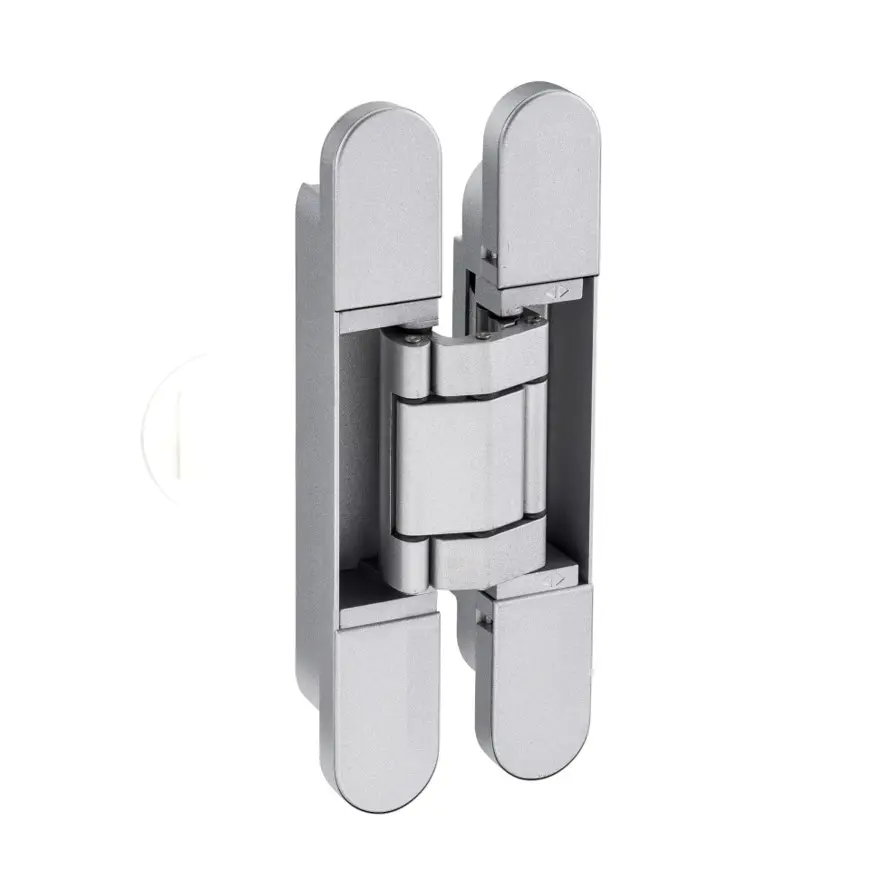

| Model Series | K7080 (also known as KUBI 7 K7080) |
| Available Size | 160 mm (Flange Height) |
| Flange Width | 29.8 mm |
| Flange Shape | Rounded |
| Material | Zinc alloy (die-cast) |
| Opening Angle | 180° |
| Application | For flush wooden interior doors and wooden frames |
| Min. Door Thickness | ≥ 40 mm |
| Max. Door Weight (2 hinges) | 80 kg (176 lbs) |
| Max. Door Weight (3 hinges) | 100 kg (220 lbs) |
| 3D Adjustment | Side: -2 / +3 mm Height: ±3 mm Closing Pressure: ±1 mm |
| Standard Packaging Unit | 1 piece (individually packed) |
| Carton Quantity | Not specified in public data sheets; contact a Häfele distributor for bulk ordering. |
